How to Set-Up Your Sound System

Setting Up your Starlite Sound System is very simple, every package comes with:

  • 2 x Powered Speakers
  • 2 x 25ft Power Cable (for Speakers)
  • 1 x 8 Channel Mixerm(On a Case)
  • 1 x Wired Microphone (inside Mixer Case)
  • 2 x Speaker Stands
  • 1 x Mic Stand (On Request)
  • 1 x Extension
  • 1 x Powerbar

Inside the Mixer Case you will find:

  • 2 x 25ft 1/4 inch to XLR (Mixer to the Speakers Cable)
  • 1 x 25ft XLR cable (Mixer to Microphone Cable)
  • 1 x Microphone
  • 1 x Power Block

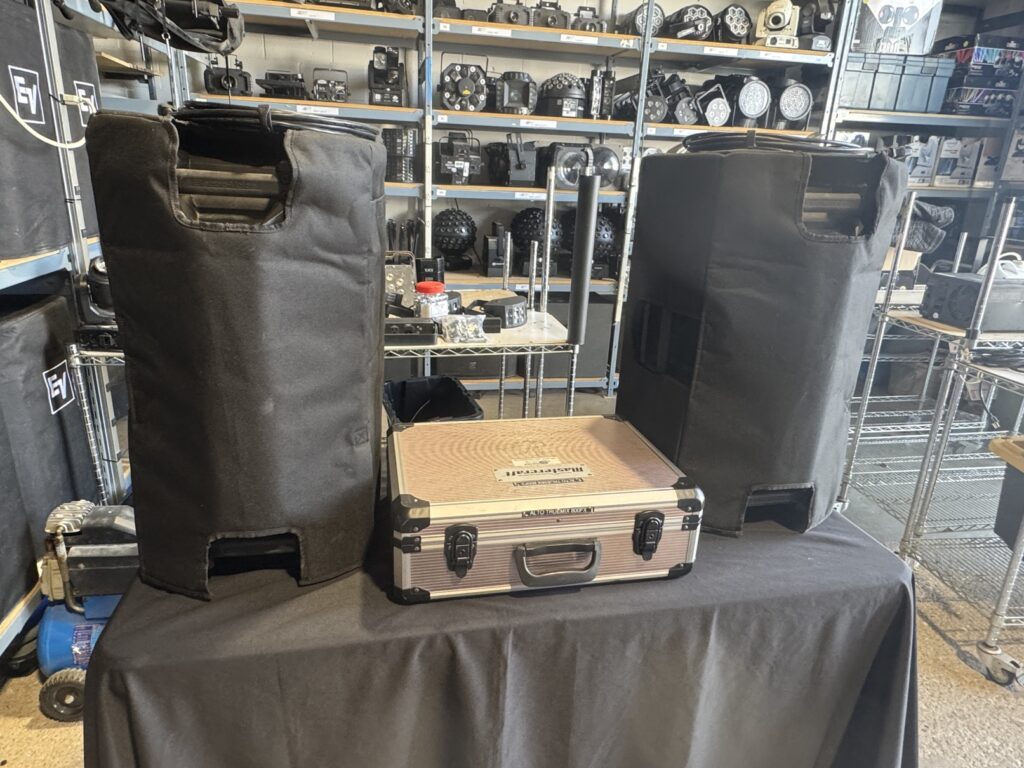

Thats is how normally look the Sound System #1, The speakers comes with covers to protect them during the transportation and the Mixer Case that have all the necessary cables to connect the speakers besides the power cables and extensions that should have to be sent in a crate

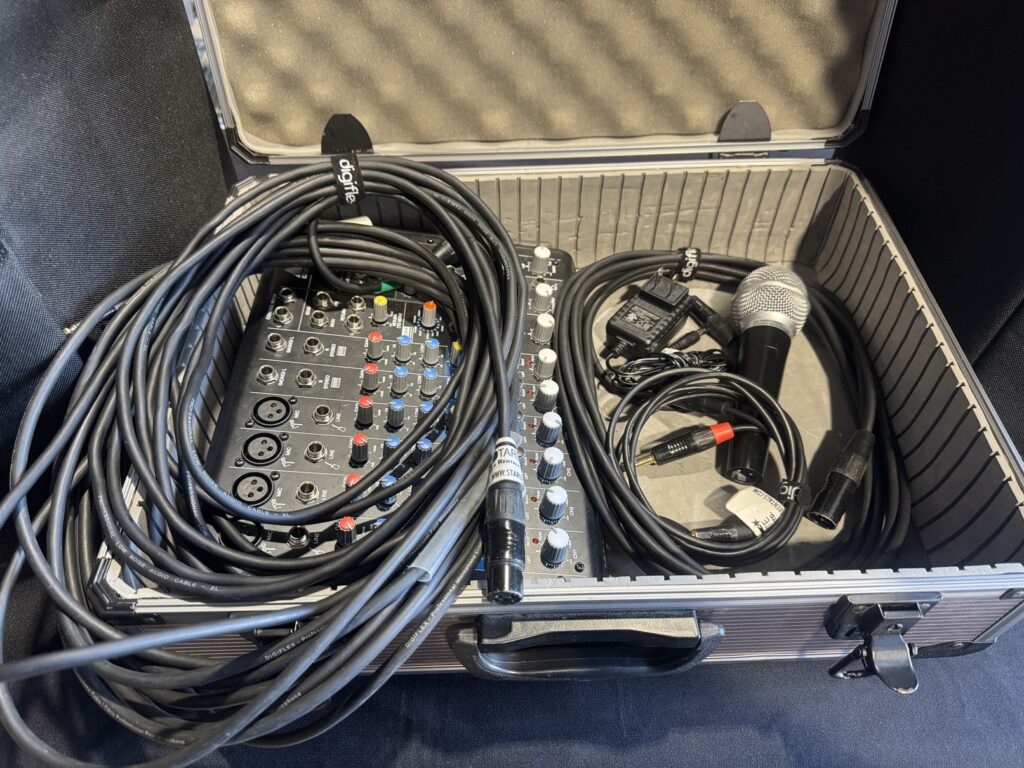

The Mixer Case have most of the cables you will need, besides power cables for the speakers and extensions all you need to connect the mixer to the speakers is here

  • 2 x 1/4 inch to XLR



Connecting Power to the System

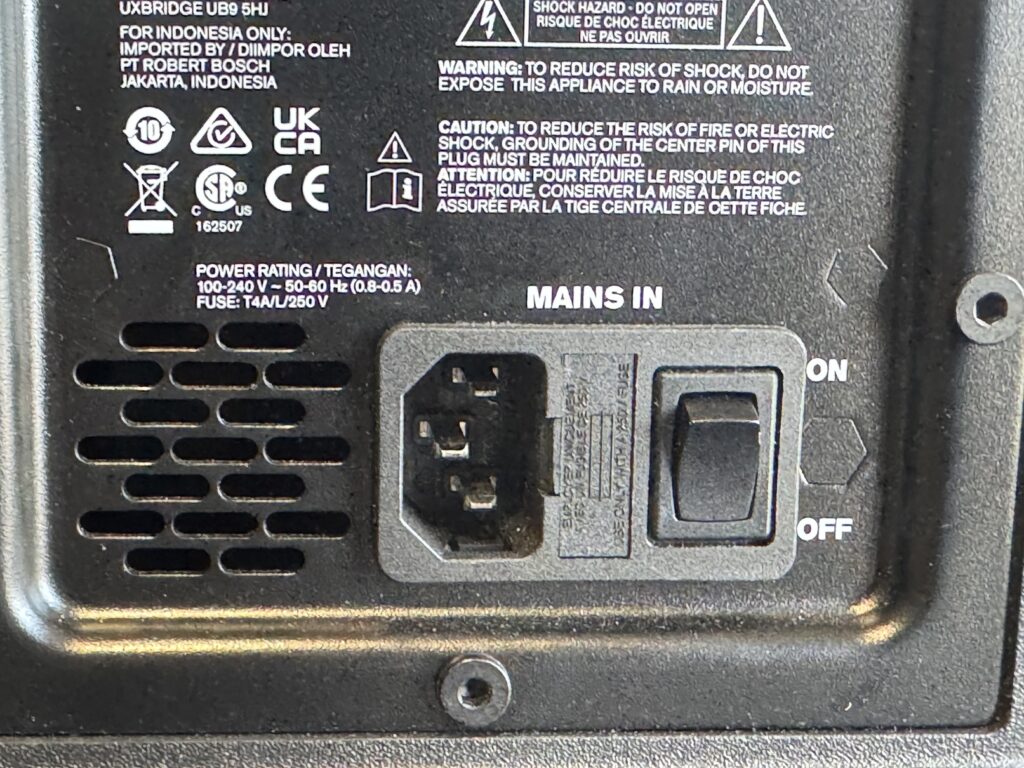

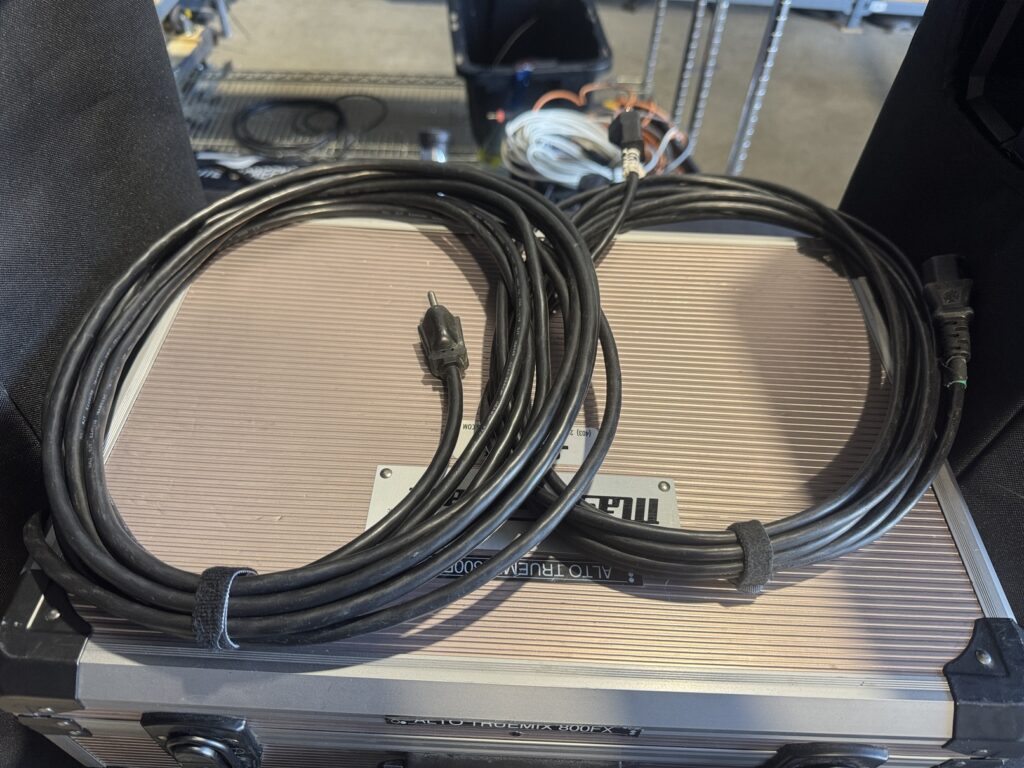

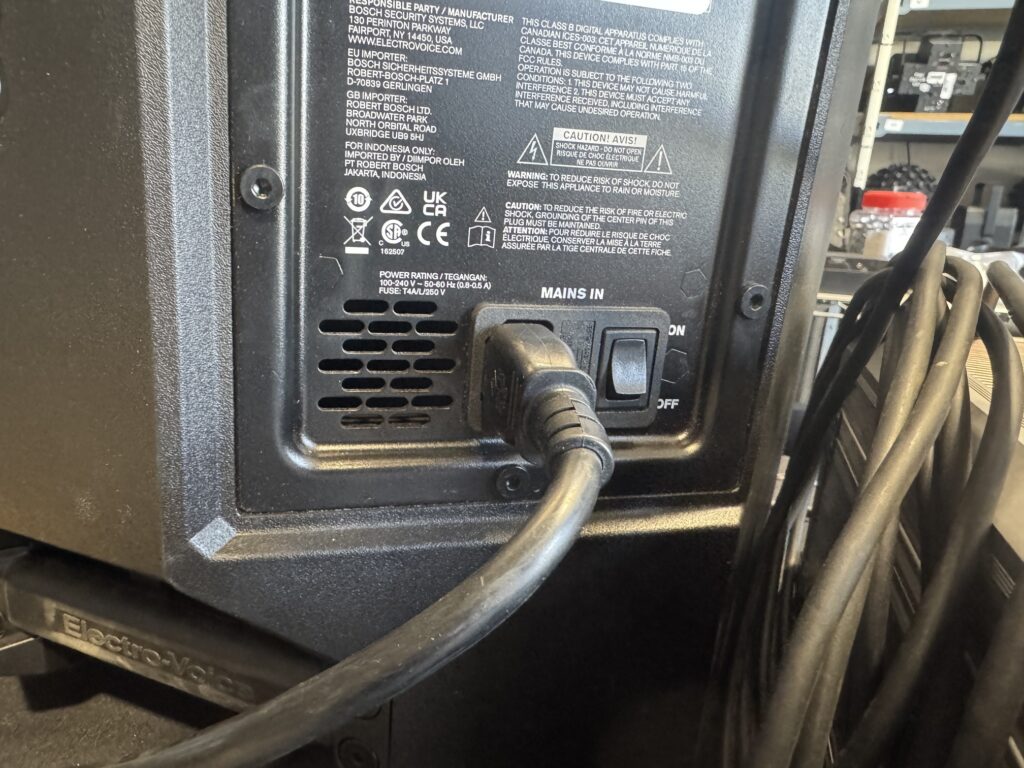

Connecting Power Cables to the speakers, you will have at least 2x 25ft Power Cables that you will be connecting to the MAINS IN input on the speaker

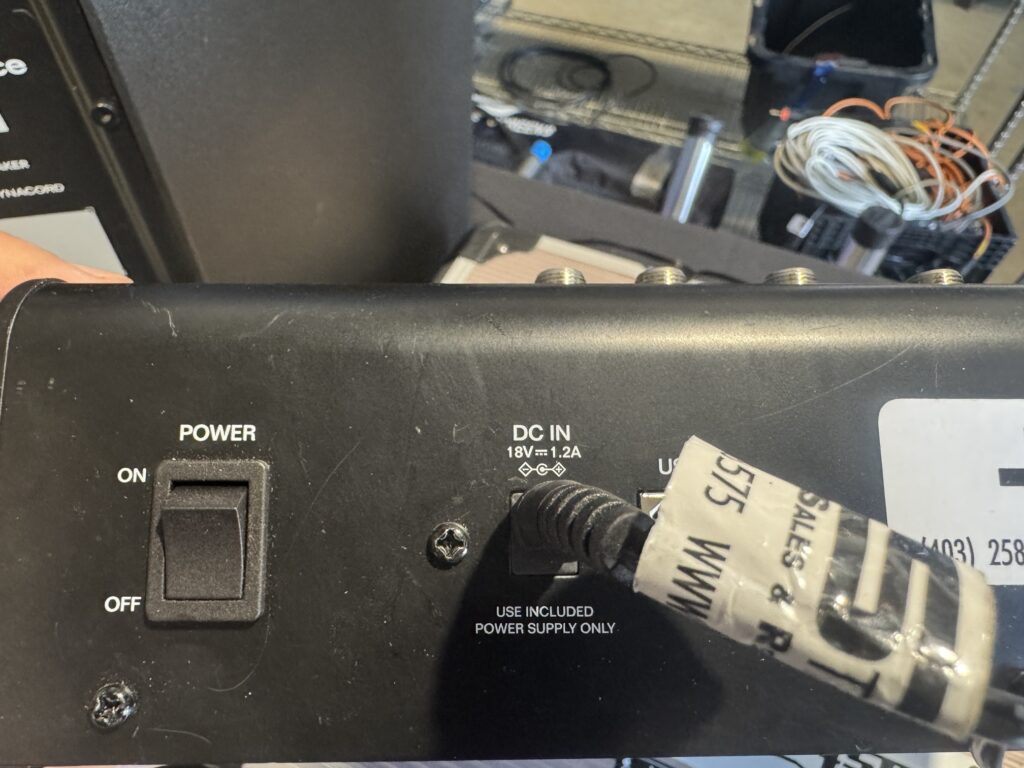

After connecting power to the speaker please connect the power block to the back of the Mixing Board, Once finished with power we need to connect the audio cables to connect the mixing board with the speakers

Connecting Audio Cables to the Mixing Board

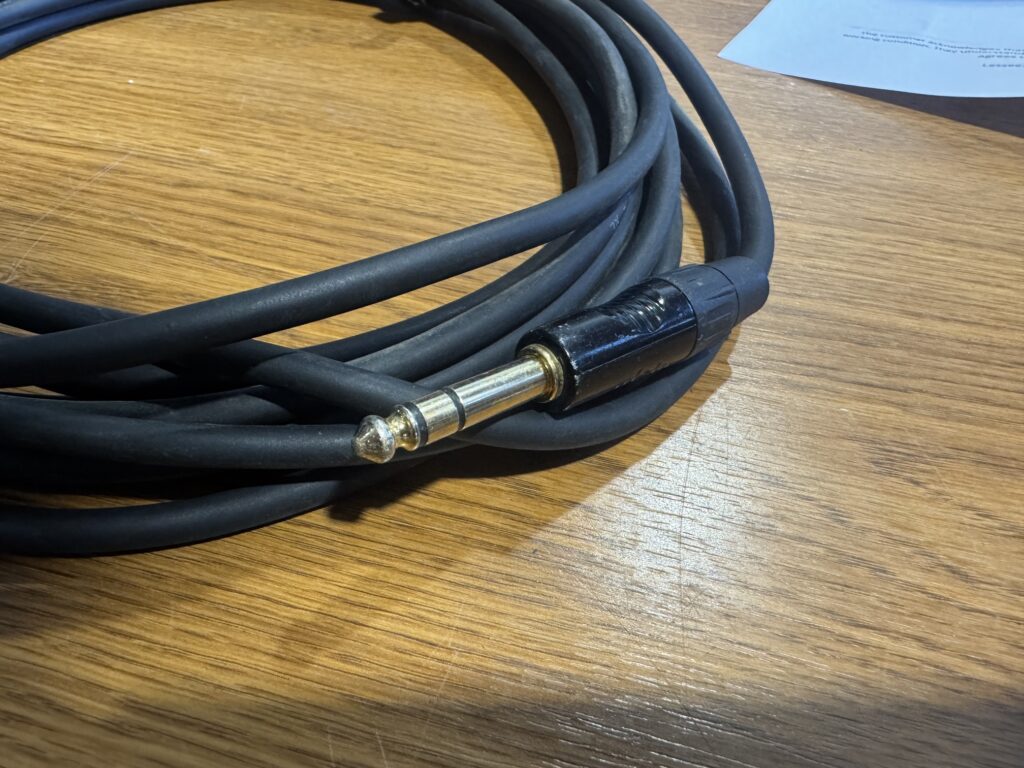

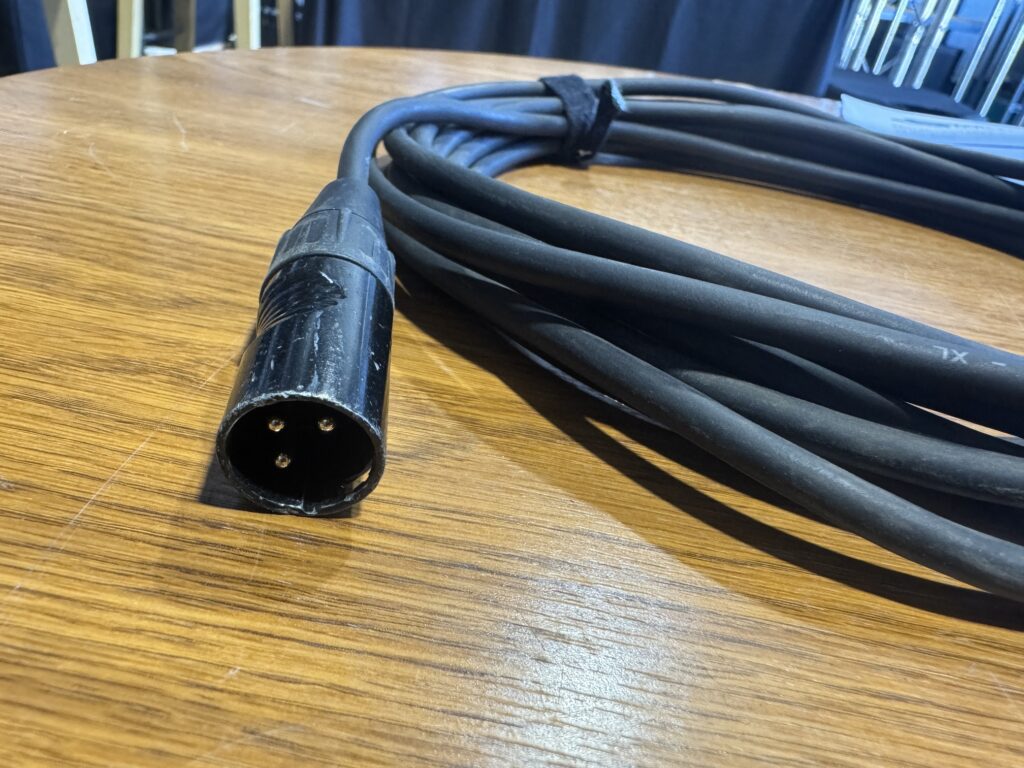

On the Mixing Board Case you will find 2 x 1/4 inch to XLR cables, the 1/4 inch looks like a big headphone jack and the XLR have the 3 pins

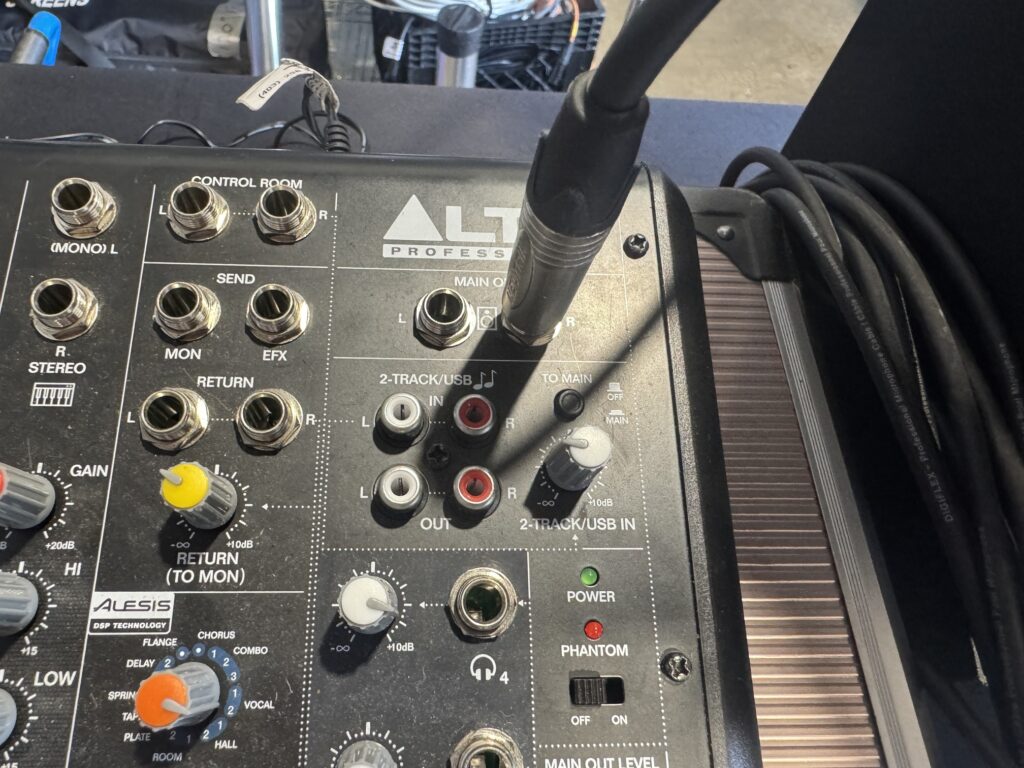

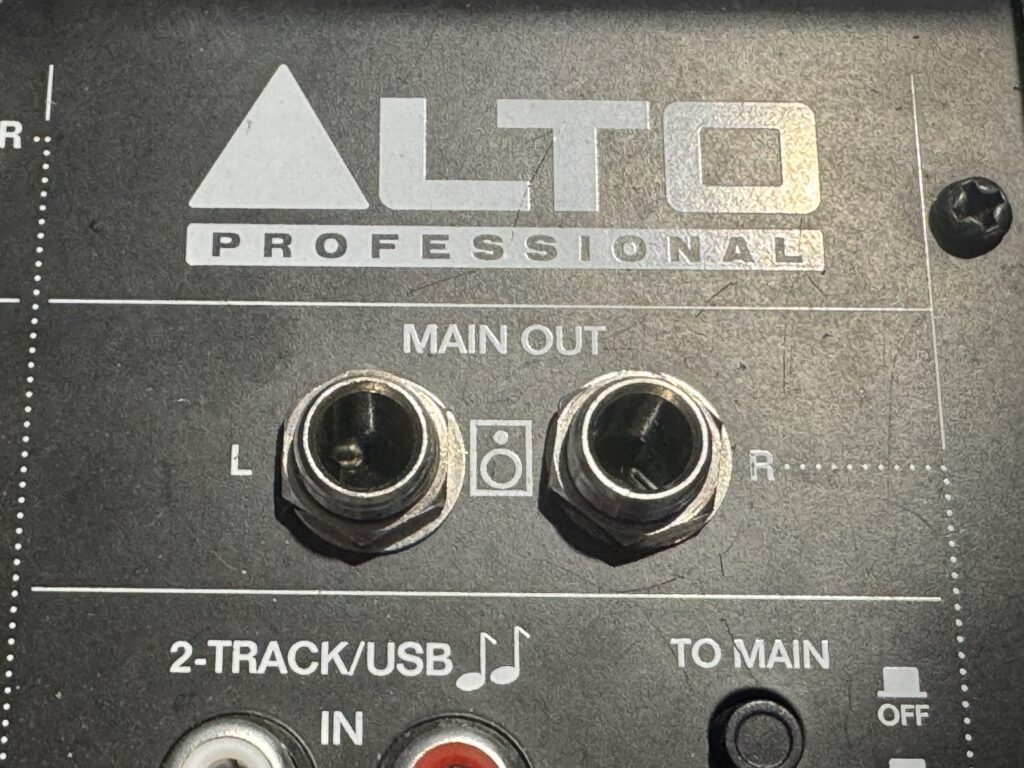

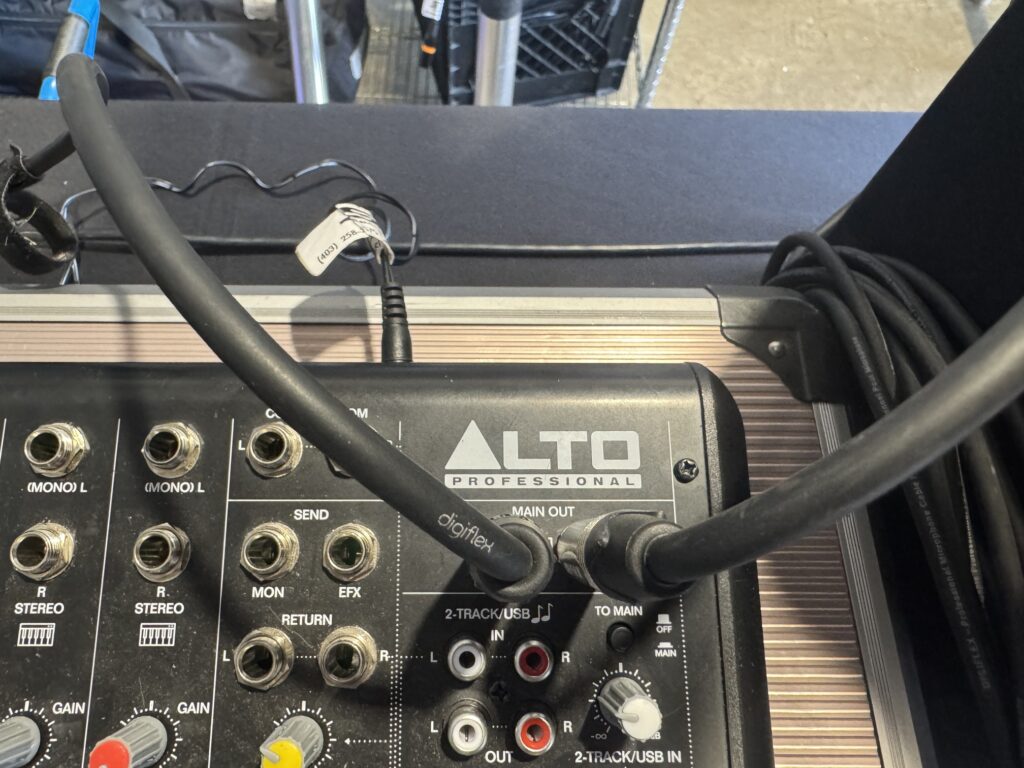

The 1/4 inch cable will go to the MAIN OUT on the Mixing Board, you decide which are going to be yout left and right speaker

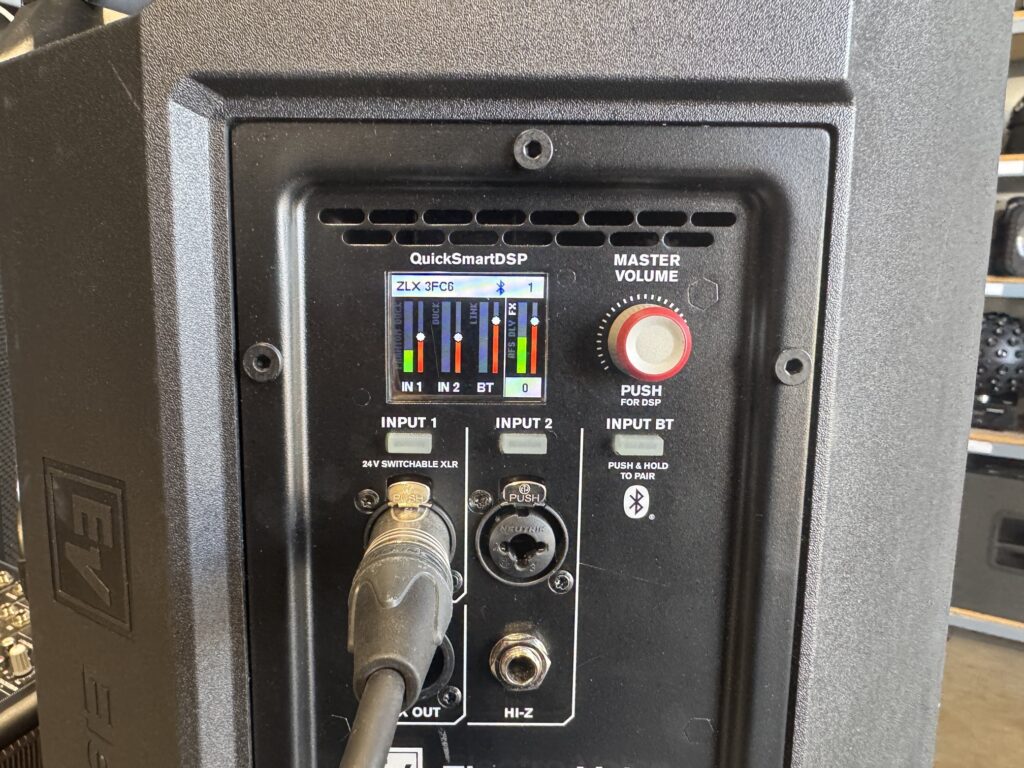

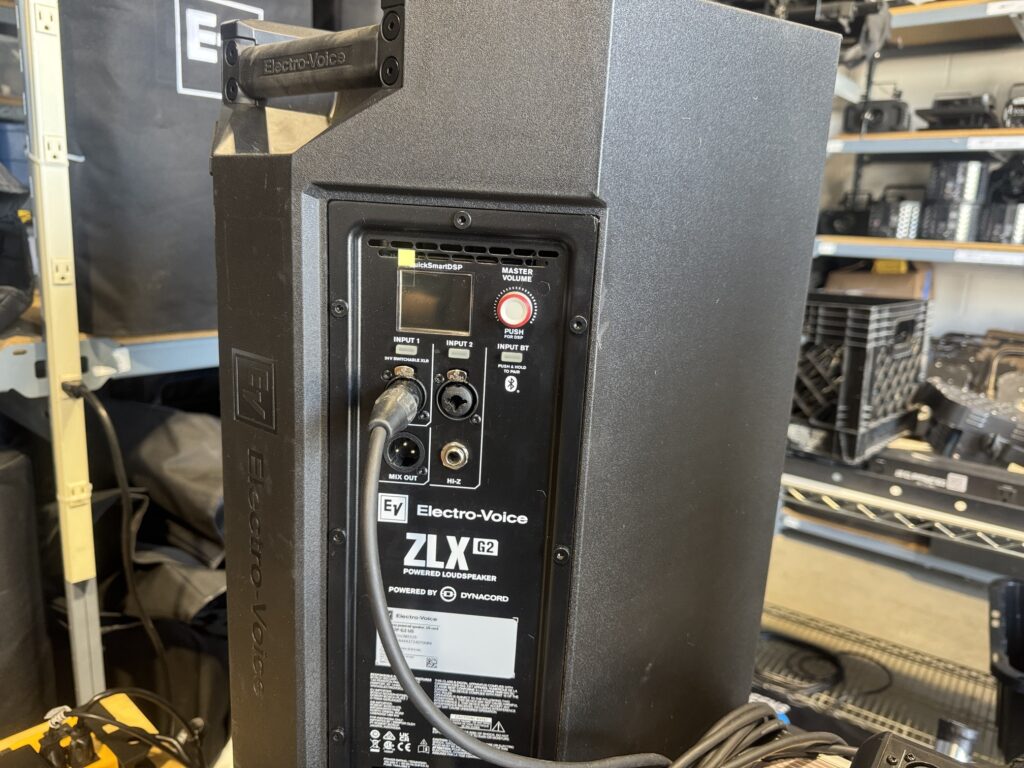

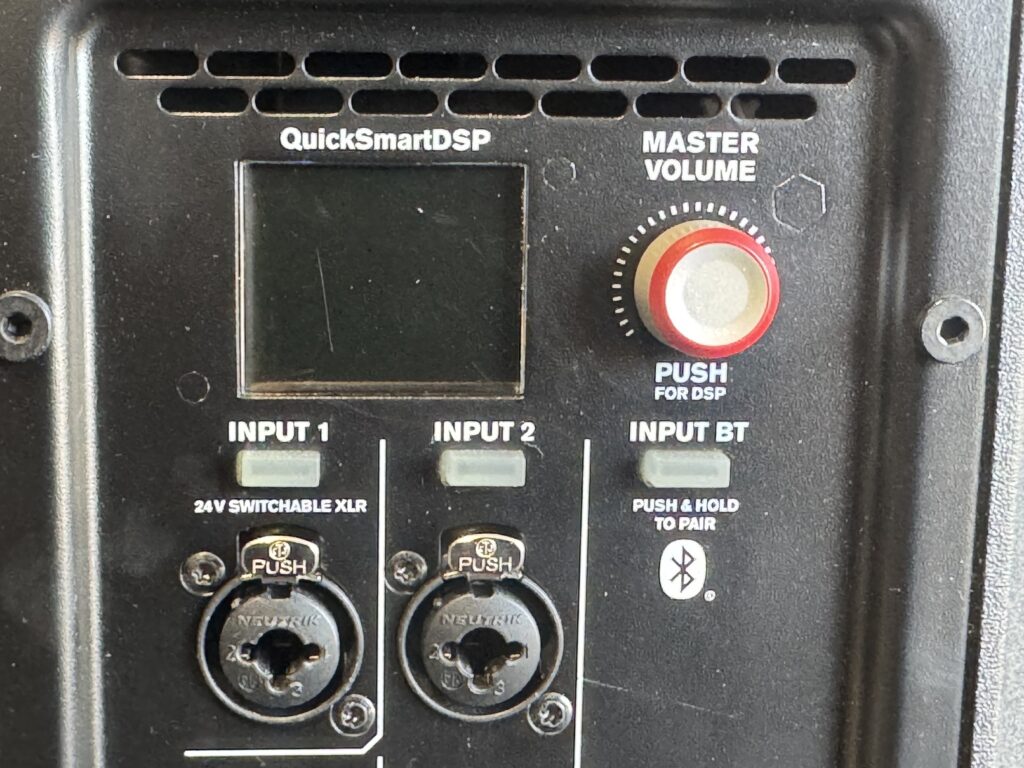

The other end of the cable , the XLR will go to the INPUT 1 on the speaker

Connecting Microphone to the Mixing Board

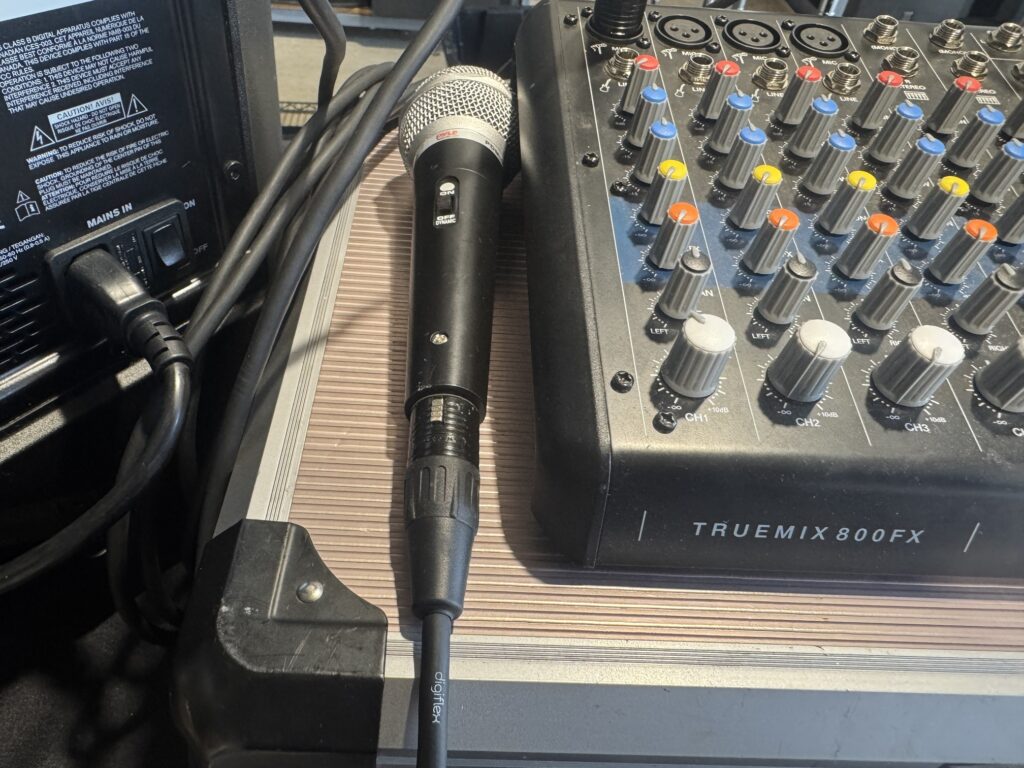

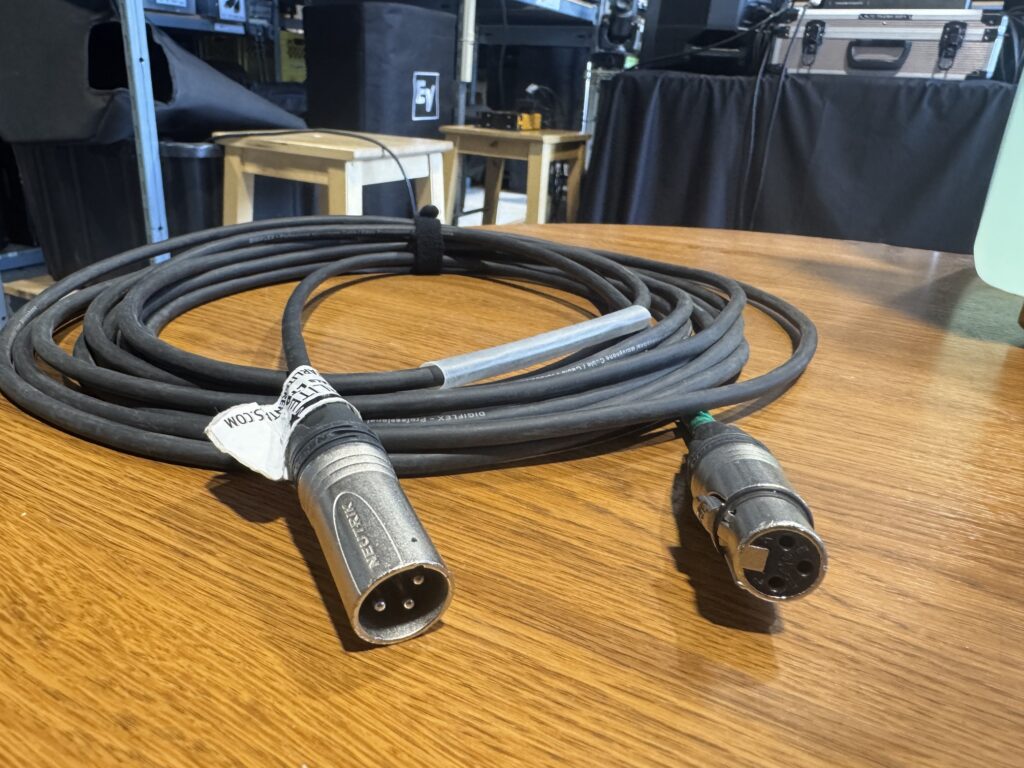

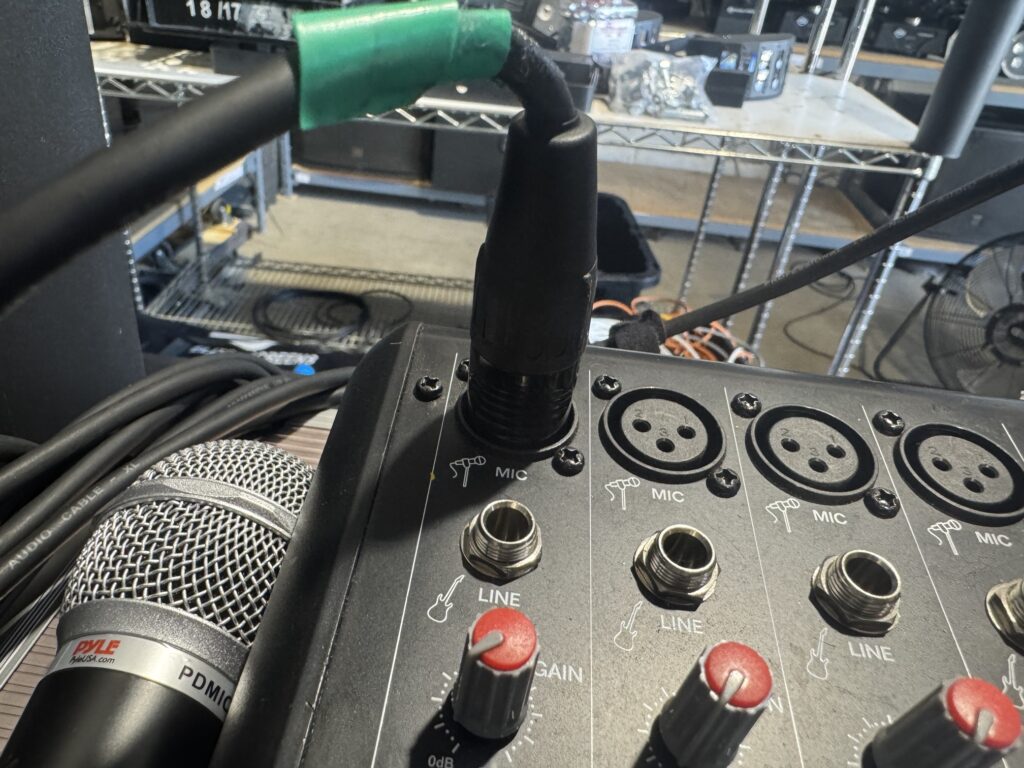

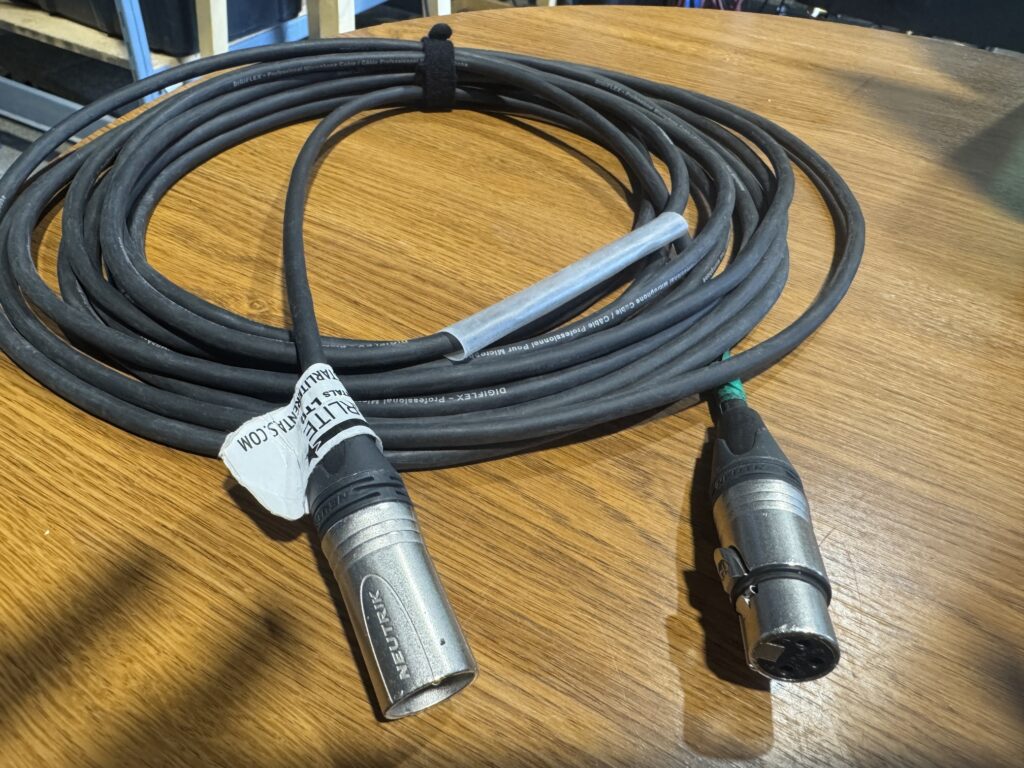

To connect the microphone to the board we will be using the XLR to XLR Cable provided in the Mixing Board Case, one of the ends of the cable will go to the CH 1 and the other end to the MICROPHONE

We are ready!

Controlling the Volume and Bluetooth Connection

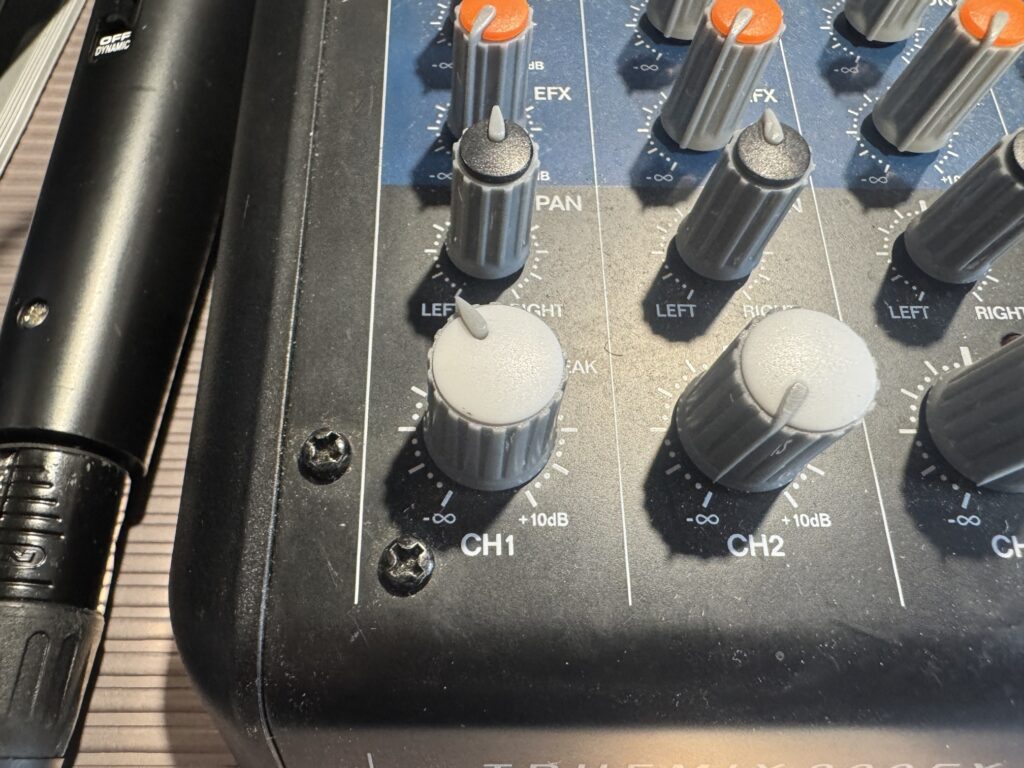

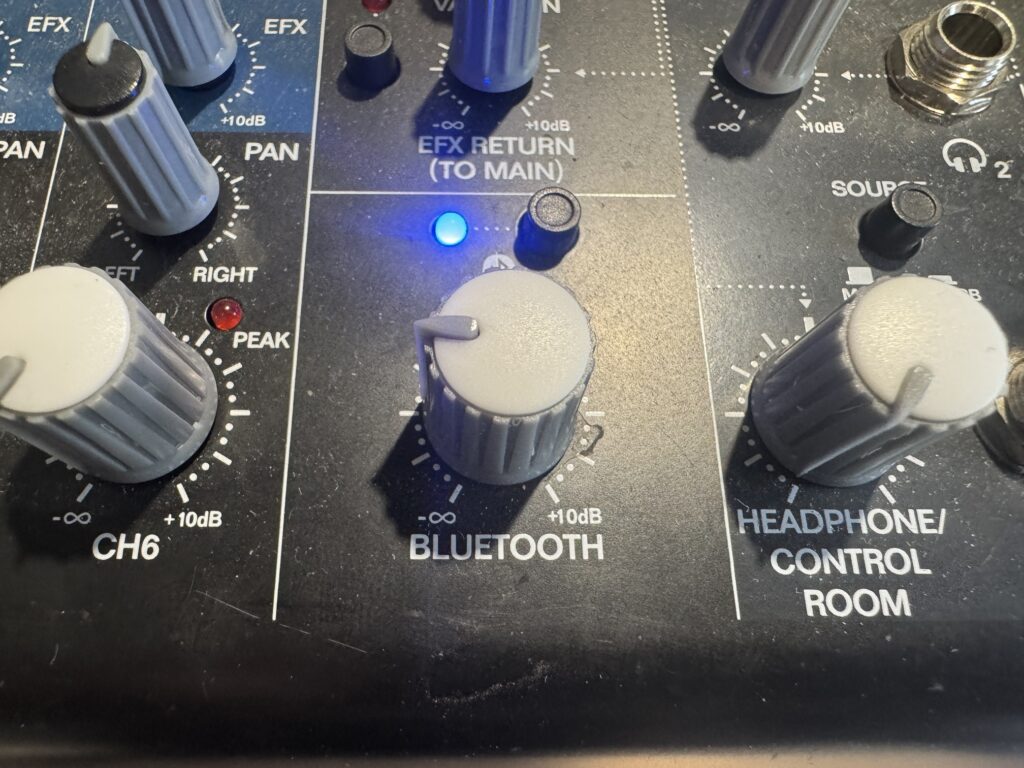

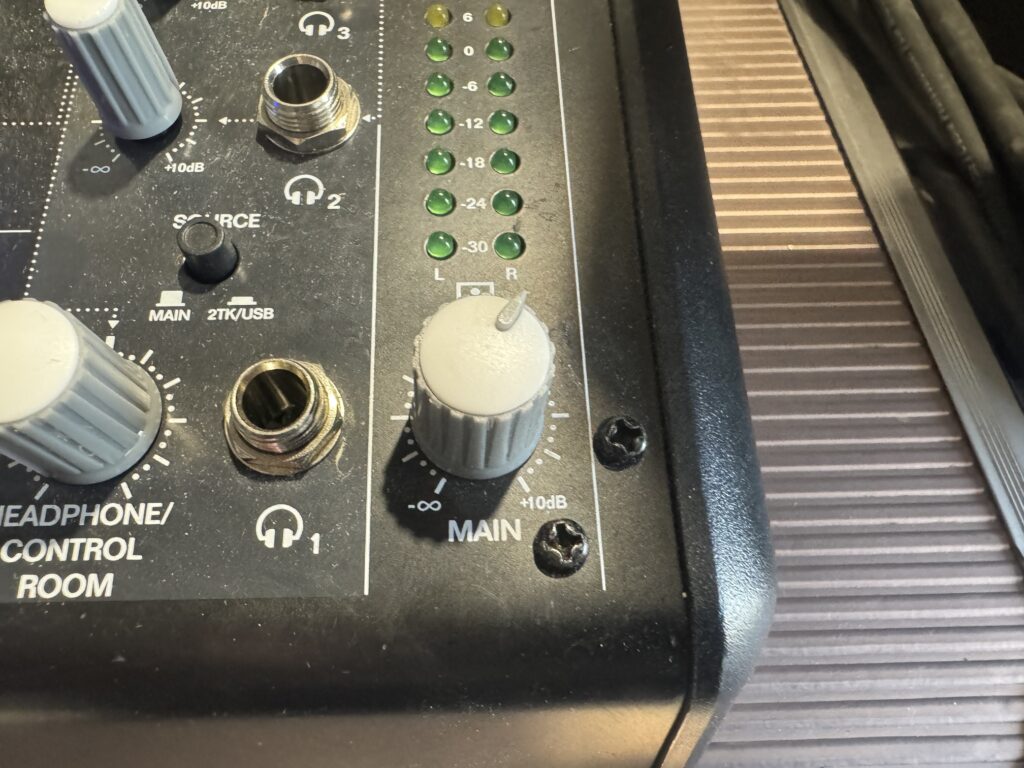

We are just now ready to use the system, there are 3 principal controls we need, MAIN being the most important since controls all the volumes normally is recommended leave it around 60-70%, then the Bluetooth will control any device that is linked to the Bluetooth on the device, in order to connect to Bluetooth you just need to long press the black button over the Bluetooth knob 3 seconds and will be discoverable the name of the device is TRUMIX 800FX, finallly we have the volume control for the CH1 with in this case will be the microphone
